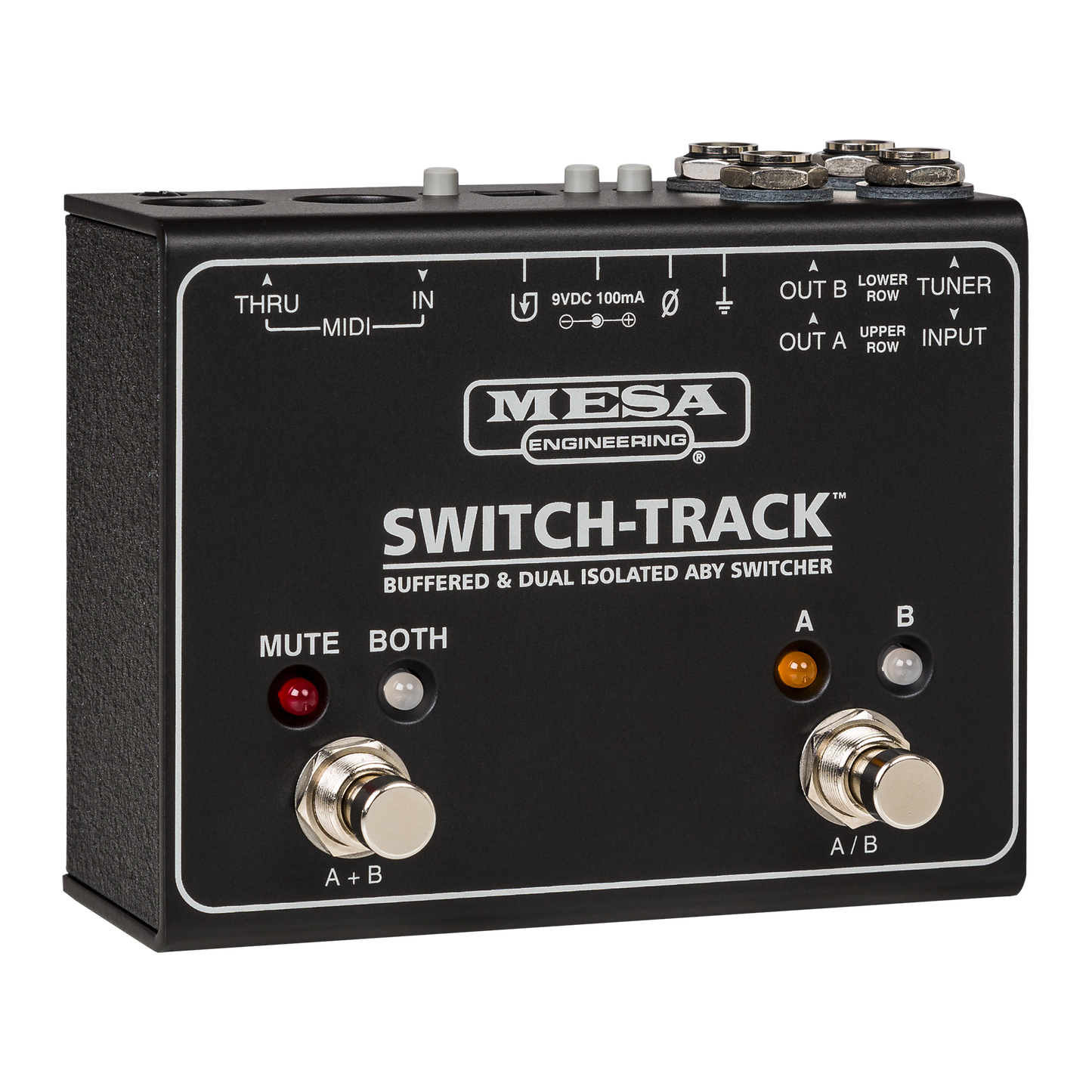

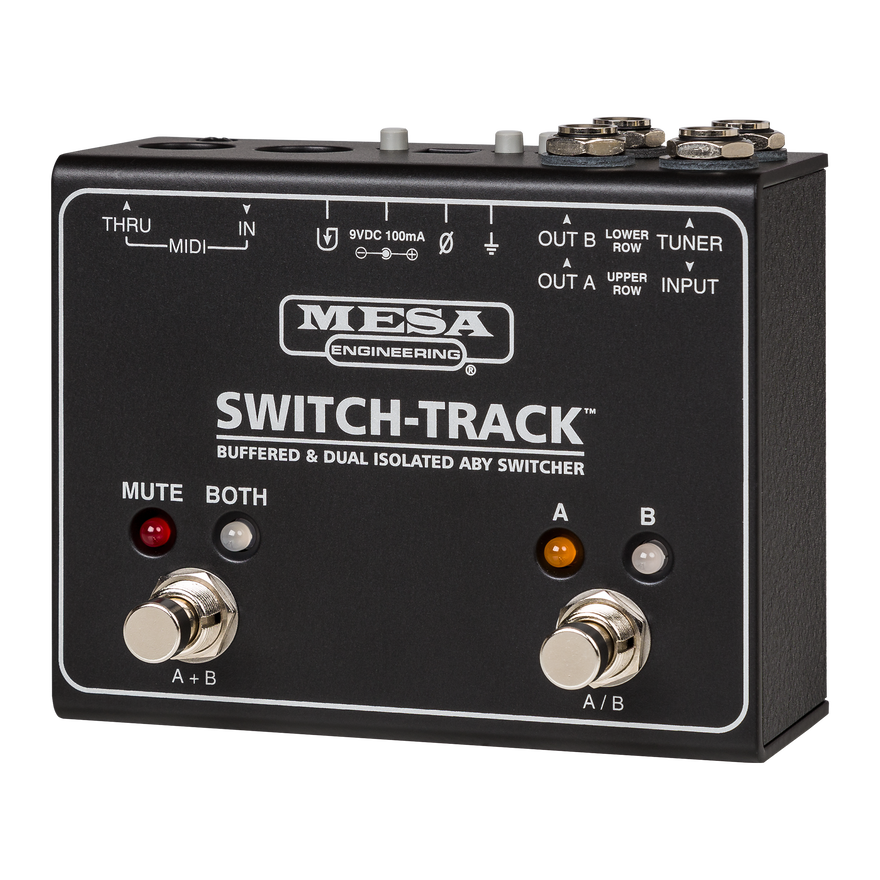

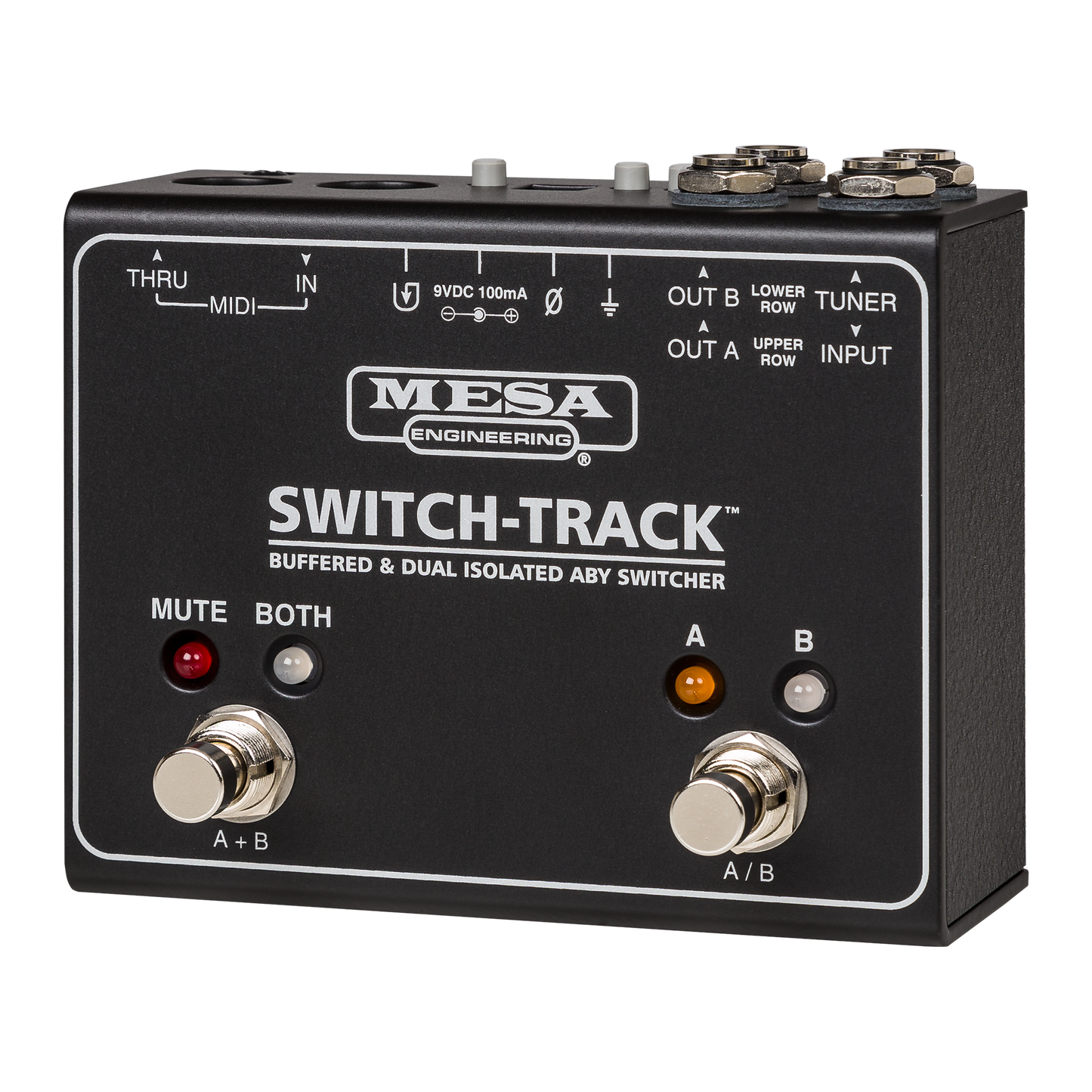

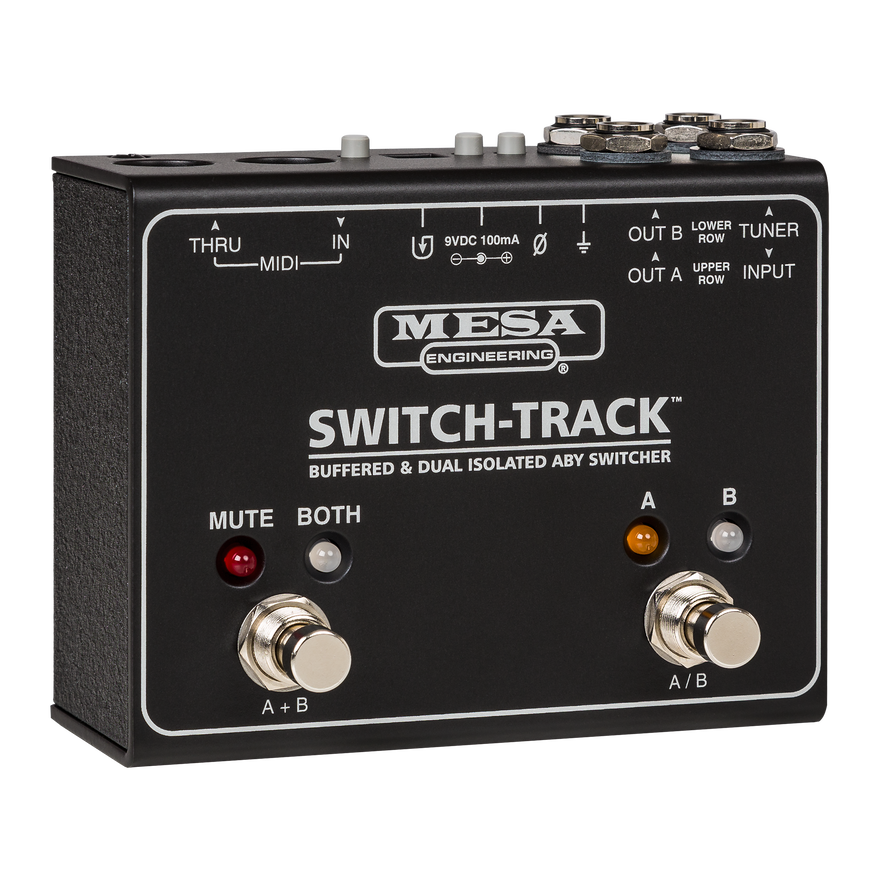

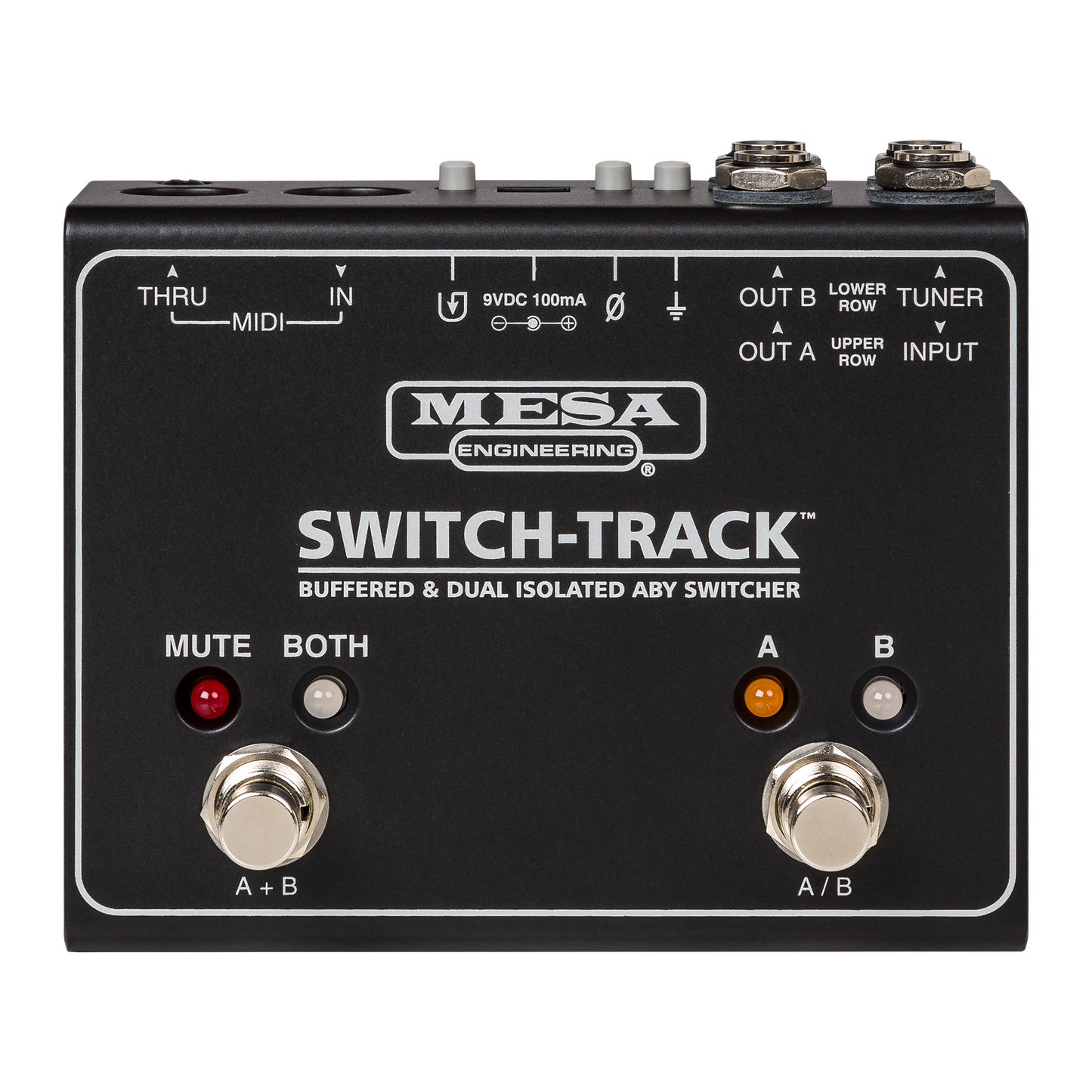

The Switch-Track™ enables an either-or-both, ABY scenario for your two favorite amplifiers. Select between two different amplifiers, two identical amps for more Channels and sonic options or combine them for a bigger, fuller sound, or a specific blended character.
The INPUT is buffered to prevent signal loss due to increased loading when both amplifiers are engaged. Both OUTPUTS are transformer isolated for consistent tone and provide unbalanced or balanced signals for longer than normal cable runs. The “B” OUTPUT’s Ground is default-lifted to eliminate Ground loops.
The switching (including phase) can be triggered at the unit itself for Pedal-Board mounted applications or remote controlled via Midi Program Change (or Control Change) commands sent from a Midi Controller in scenarios that require the ABY be located at the amplifiers or in a larger Touring Rack setup.

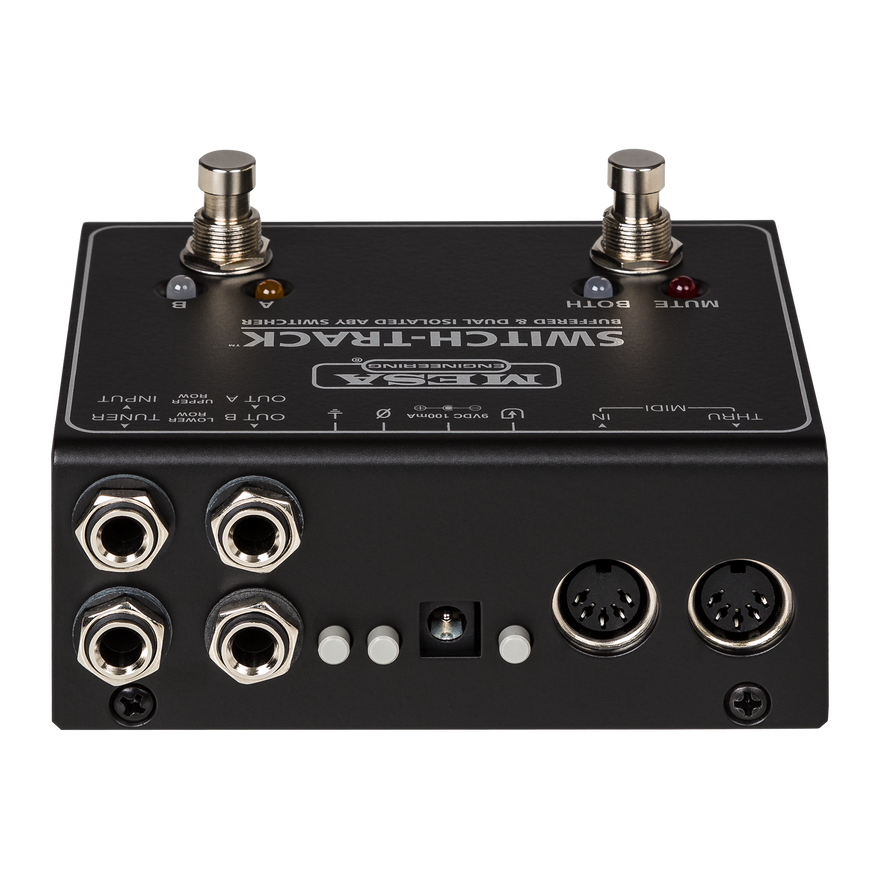

Other valuable features include an “always on” low impedance TUNER OUT jack, a GROUND LIFT switch for isolating the A Output (B is always isolated), a PHASE invert switch (which is also MIDI controllable) for the “B” Output’s Phase relation to the “A” Output, MIDI IN and THRU DIN jacks and a Midi Preset (Program) STORE button. Two on-board Footswitch Buttons offer A/B and A+B/MUTE.
Switch-Track Buffered & Dual Isolated ABY Switcher
Switch-Track Buffered & Dual Isolated ABY Switcher
Gratis en snelle verzending
Gratis en snelle verzending
Bestellingen die op maandag t/m vrijdag uiterlijk 12:00 uur (tijdzone CST) worden geplaatst (feestdagen uitgezonderd), worden op dezelfde dag verzonden. Bestellingen die na dit tijdstip worden geplaatst, worden de volgende werkdag verzonden. Alle bestellingen boven de $ 100 worden gratis over land verzonden binnen de Verenigde Staten.
Beperkte garantie
Beperkte garantie
Winkel en speel vol vertrouwen in de wetenschap dat uw versterker wordt beschermd door onze beperkte garantie van 5 jaar. Meer informatie over garanties en uitsluitingen vindt u hier .
Handgesoldeerd in Californië
Handgesoldeerd in Californië
MESA/Boogie-versterkers worden al meer dan 45 jaar met de hand gesoldeerd in dezelfde fabriek in Petaluma, Californië.
De Gibson App Drie Maanden Gratis
De Gibson App Drie Maanden Gratis
Alleen voor een beperkte tijd: ontvang een abonnement van drie maanden op de Gibson App gratis bij de aankoop van dit product. Klik hier voor meer informatie over de Gibson App.
The Switch-Track™ enables an either-or-both, ABY scenario for your two favorite amplifiers. Select between two different amplifiers, two identical amps for more Channels and sonic options or combine them for a bigger, fuller sound, or a specific blended character.
The INPUT is buffered to prevent signal loss due to increased loading when both amplifiers are engaged. Both OUTPUTS are transformer isolated for consistent tone and provide unbalanced or balanced signals for longer than normal cable runs. The “B” OUTPUT’s Ground is default-lifted to eliminate Ground loops.
The switching (including phase) can be triggered at the unit itself for Pedal-Board mounted applications or remote controlled via Midi Program Change (or Control Change) commands sent from a Midi Controller in scenarios that require the ABY be located at the amplifiers or in a larger Touring Rack setup.
Other valuable features include an “always on” low impedance TUNER OUT jack, a GROUND LIFT switch for isolating the A Output (B is always isolated), a PHASE invert switch (which is also MIDI controllable) for the “B” Output’s Phase relation to the “A” Output, MIDI IN and THRU DIN jacks and a Midi Preset (Program) STORE button. Two on-board Footswitch Buttons offer A/B and A+B/MUTE.
