Wattage

Selectable Full, Half or Low Multi-Watt™ Power Modes, producing approximately 12, 5, or 1-Watt(s) of output power (approx. 15, 6, or 2-Watts with optional 6L6 Power Tubes)

Channels & Modes

1 Channel / 2 Modes (Normal or Low)

Channels/Inputs

Normal & Low Inputs - NORMAL = Clean to Overdrive, LOW = Cleaner

Mode Voicings styles

Single Channel with two Inputs: Normal Input = Clean to Overdrive Low Input = Cleaner

Graphic Eq Reverb Fx Solo

Reverb, Tremolo

Foot switchable Functions

Reverb On/Off, Tremolo On/Off (2-Button Vintage Style Footswitch Included)

Speakers Impedance

1 - 12" 8 Ohm Jensen Blackbird ALNICO 40 / Total Load = 8 Ohms

Weight

31 lbs.

Dimensions

17.5” (44.45 cm) H x 20” (50.8 cm) W x 8 7/8” (22.54 cm) D (Height measurement includes rubber feet and the top of the handle in its flat position)

Amp Type

Tube

Rectifier Type

Silicon Diodes

Preamp Tubes

4x 12AX7

Power Amp Tubes

2x 6V6 (or optional 2x 6L6)

Maintenance Free Fixed Bias

Cathode Biased, which is also Maintenance Free

Wattages Quick Reference

Full (approximately 12 watts) Half (approx. 5 watts) or Low Power (approx. 1 watt) with Stock 6V6 Power Tubes (Approx. 15 watts / 6 watts / 2 watts with optional 6L6 Power Tubes) - See Power Amp Details for more information

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Patented Incremental Multi-Watt™ (Patent 9,917,560) Power Amp, featuring Duo-Class™ (Patent 7,173,488) power, provides three power and three wiring options via a single 3-Way Power Switch! Choose from the following power options: Full Power (12-Watts) - 2x6V6 (or 15-Watts w/6L6) Push-Pull, Class A, Pentode Half Power (5-Watts) - 2x6V6 (or 6-Watts w/6L6) Push-Pull, Class A, Triode Low Power (1-Watt) - 1x6V6 (or 2-Watts w/6L6) Single-Ended, Class A, Pentode

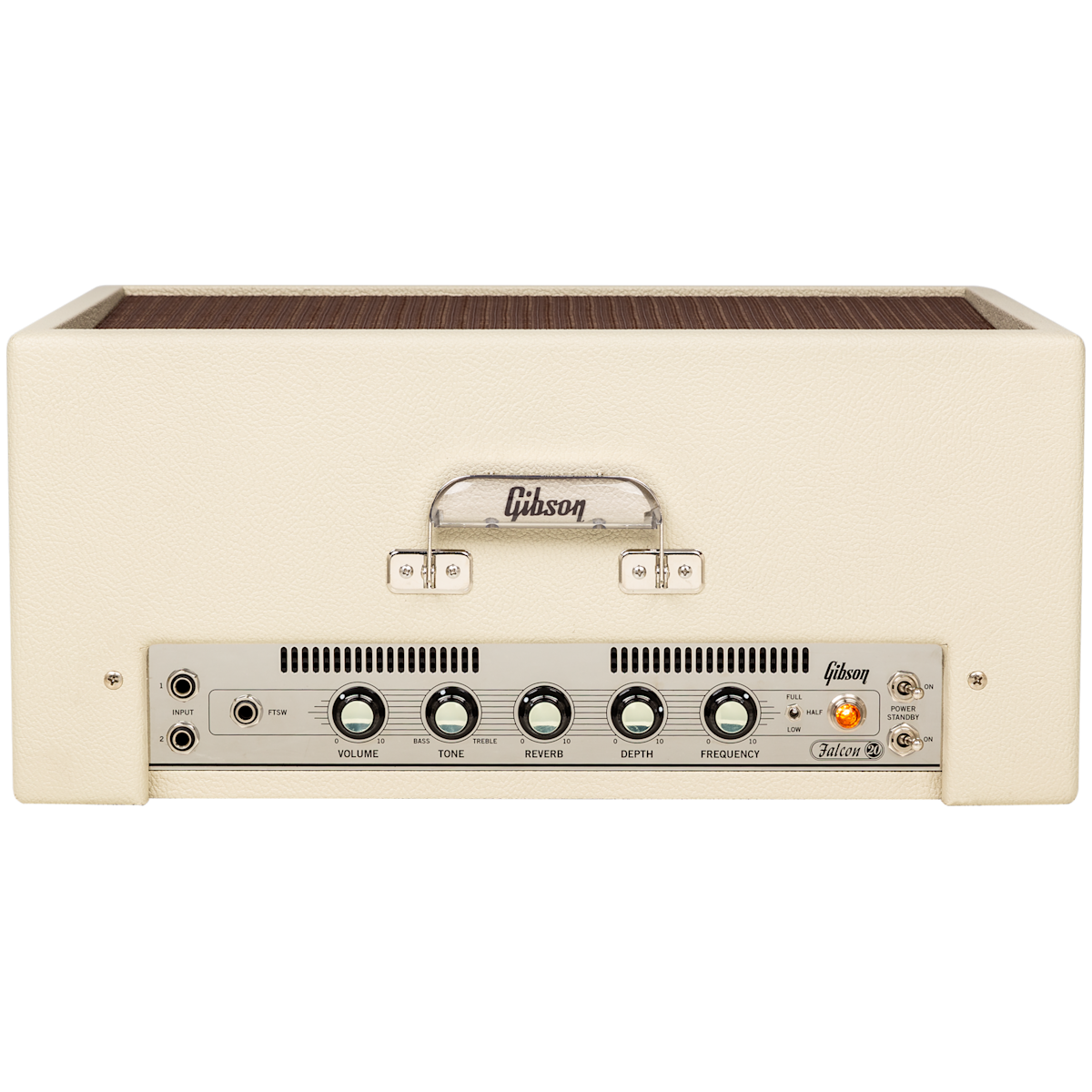

Channel Controls

Volume, Tone, Reverb, Tremolo Depth & Frequency Controls

Reverb Effects Bypass Options

Footswitchable, All-Tube, Spring Reverb & Tremolo

Speaker Outputs

One 8 Ohm and Two 4 Ohm

Slave Output

Yes - Fixed-Attenuated "MONITOR" Output from the Speaker Output

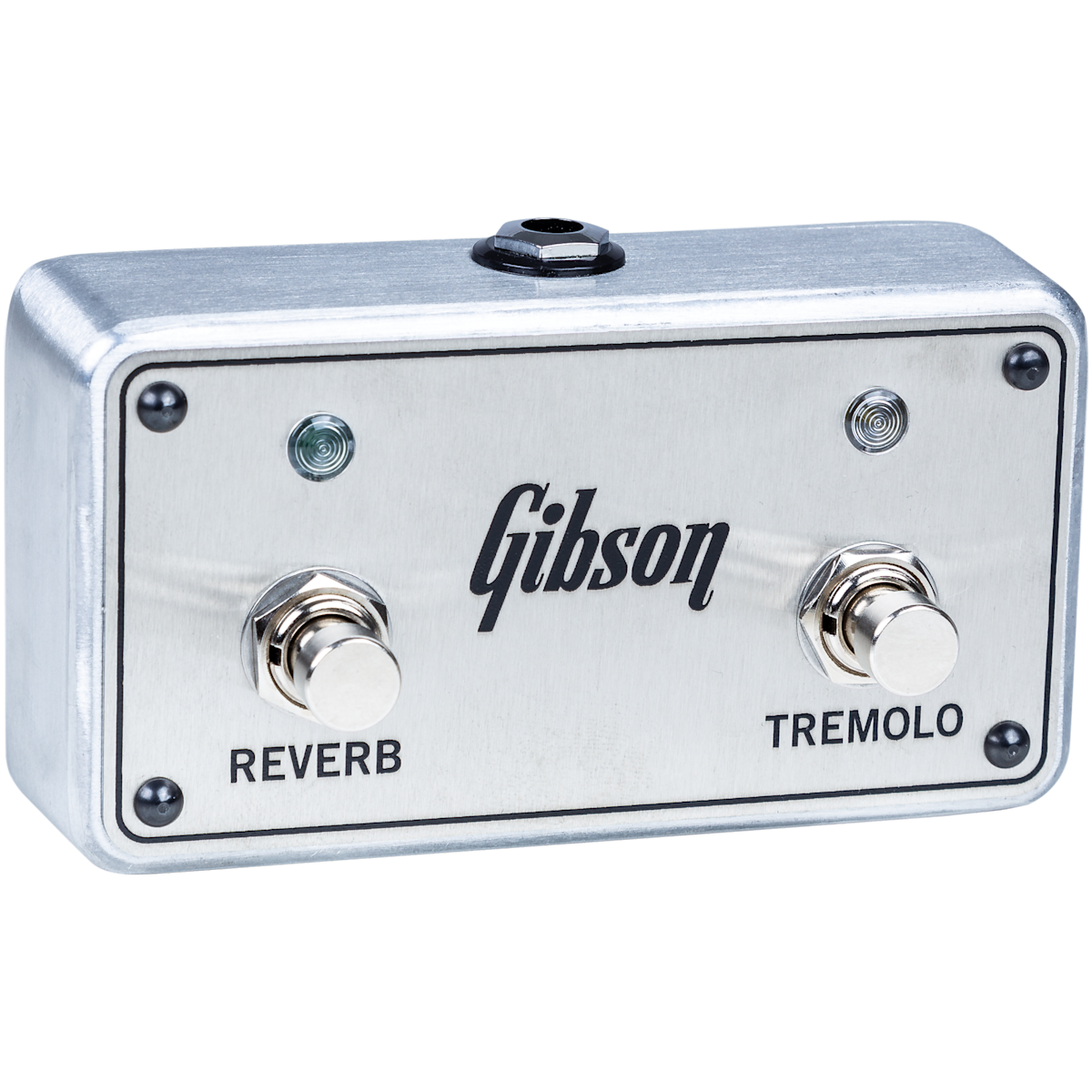

Footswitch

Included - 2-Button Vintage Style (Reverb On/Off, Tremolo On/Off)

Slip Cover

Included - Fitted Slipcover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (no extra cost)

Surf Bronco Vinyl with Bone Grille

Speakers Impedance

1 - 8 Ohm Jensen Blackbird ALNICO 40 / Total Load = 8 Ohms

Casters

n/a

Extra Features

Vintage-Inspired Construction for Tone & Portability

Weight

31 lbs. (14.06 kg.)

Height

17.5" (44.45 cm) (Height measurement includes rubber feet and the top of the handle in its flat position)

Width

20" (50.8 cm)

Depth

8 7/8” (22.54 cm)
