The Tone and Features of Our Subway® D-800™ in a Bass DI Pedal
Combining the most important features of our SUBWAY® D800™ preamp with small size and convenient connectivity, the SUBWAY BASS DI creates our most compact Grab ‘N Go Bass solution. Switchable INPUT settings include PASSIVE and ACTIVE to handle both types of pickups optimally. Classic shelving-type Tone controls handle BASS and TREBLE and are joined by a Semi-Parametric MID Band to enable accurate shaping and/or enhancement of the midrange with a switchable DEEP mode to round out the voicing options. Balanced XLR PREAMP and DIRECT Outputs with a Pin 1 Lift feature for both and a PRE/POST SOURCE switch for the DIRECT Output to handle Stage and Front Of House duties while an UNBLANCED ¼” PREAMP OUT expands the interconnect possibilities even further. When you need great tone and flexibility on the Fly Dates, or simply back up standing ready in the Gig Bag, the SUBWAY BASS-DI offers maximum Tone for minimum carry.
Specifications
Quick overview
Quick overview
available formats: D.I. Box Preamp
dimensions: 2.51 H x 6.875 W x 5.27 D
graphic eq reverb fx solo: Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ plus Deep Switch (for enhanced low-end)
weight: 1.26 Lbs.
Accessories
Accessories
Weights and dimensions
Weights and dimensions
depth: 5.27
height: 2.51
weight: 1.26 Lbs.
width: 6.875
Model: FP.DI800
Preamp features
Preamp features
chassis material: Aluminum
convection or fan cooling: Convection
extra preamp features: AC or Battery Powered, auto-switches to battery if AC fails and battery is installed
number of channels input options: 1x 1/4 with Active/Passive Switch

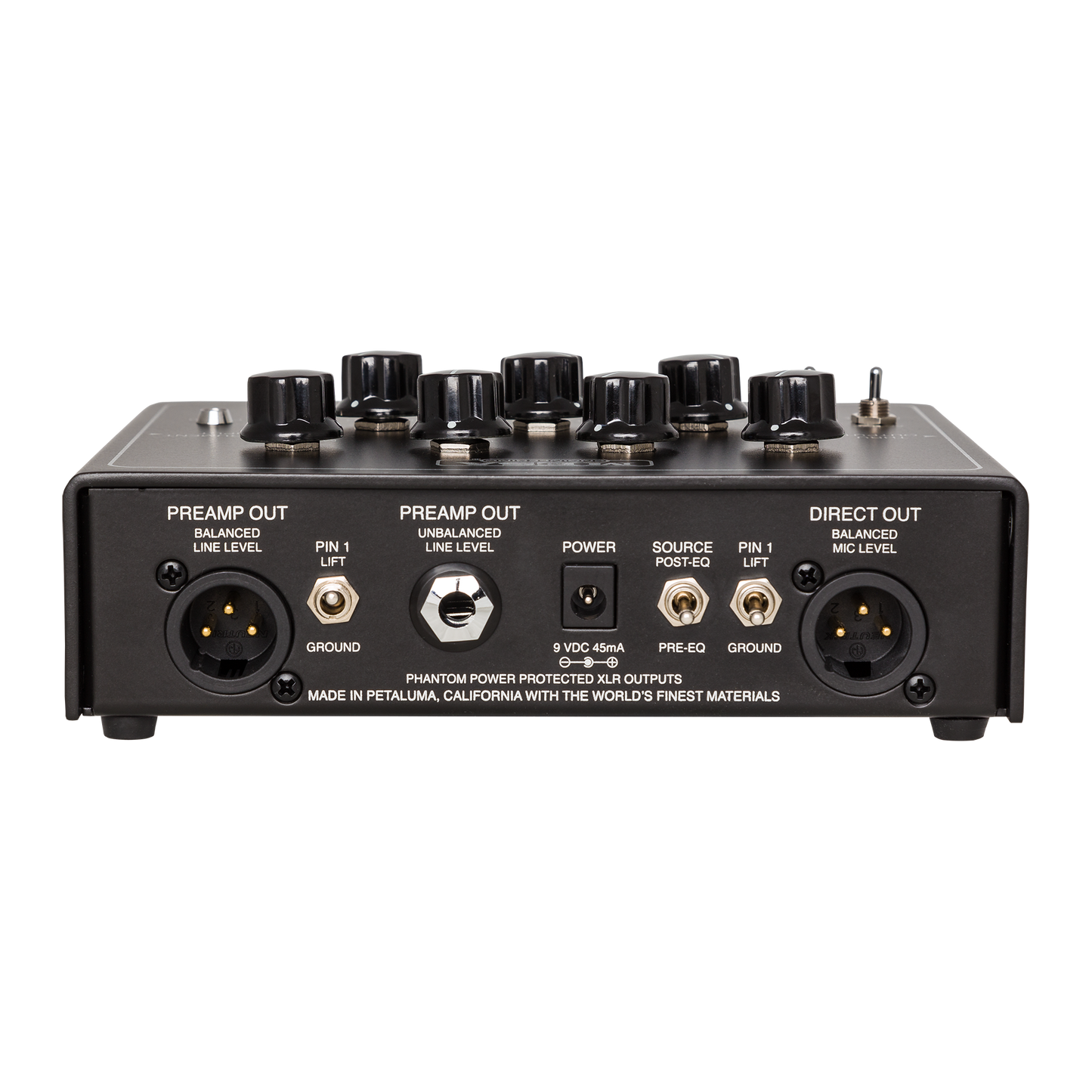

output options: Instrument-Thru Output, Balanced XLR Mic Level (DI) Out with Pre/Post & Ground Lift Switches, Line Level Preamp Outputs - Unbalanced & Balanced with Ground Lift Switch (drives any power amp)
preamp details: Solid-State Preamp featuring Input Gain, Variable Voicing (Flat to Vintage Scoop), Fully Active 4-Band EQ (+/- 12dB of Bass, Low-Mid, High-Mid, Treble) plus Deep Switch (for enhanced low-end) and Master Volume
preamp type: Solid-State Preamp derived from Subway D-800

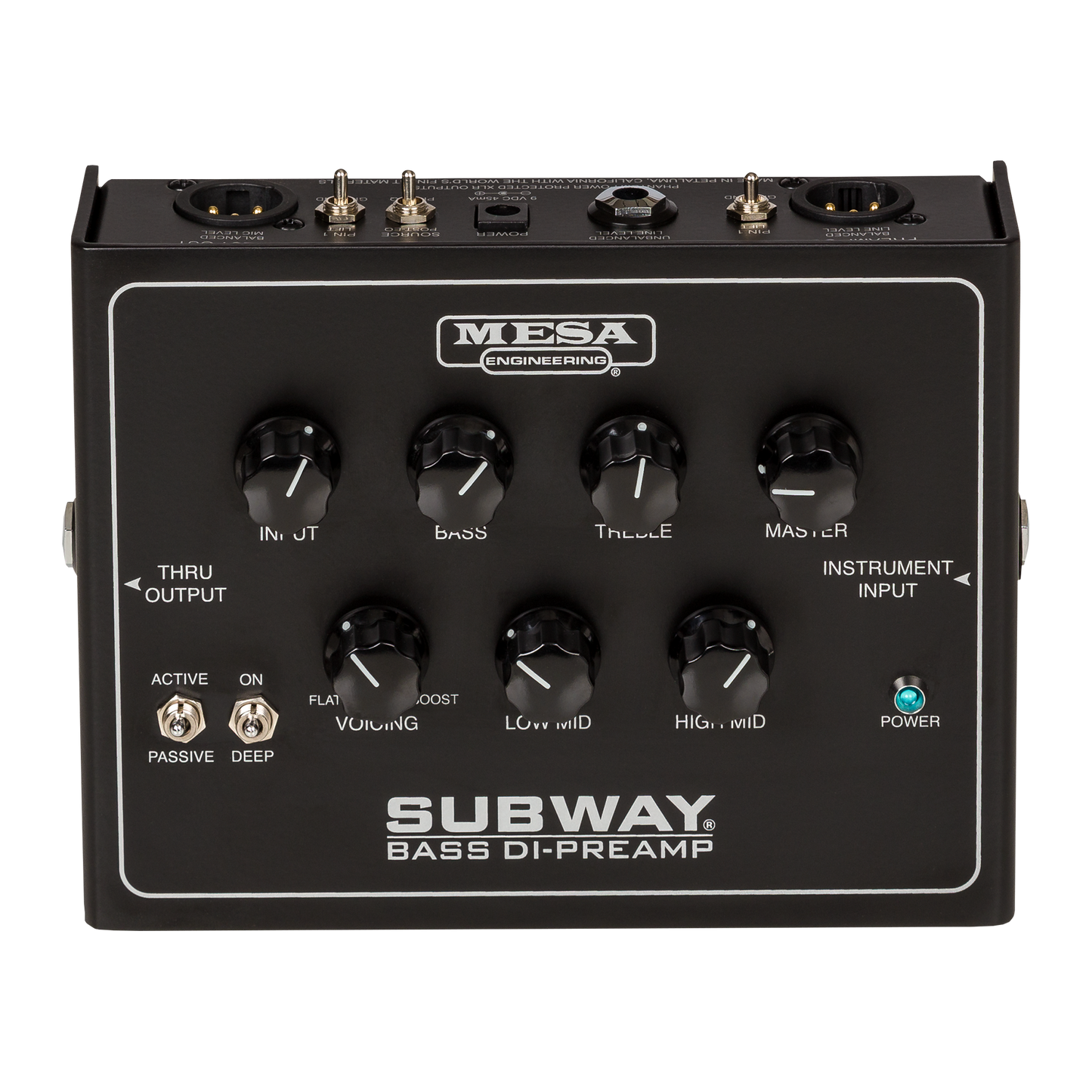

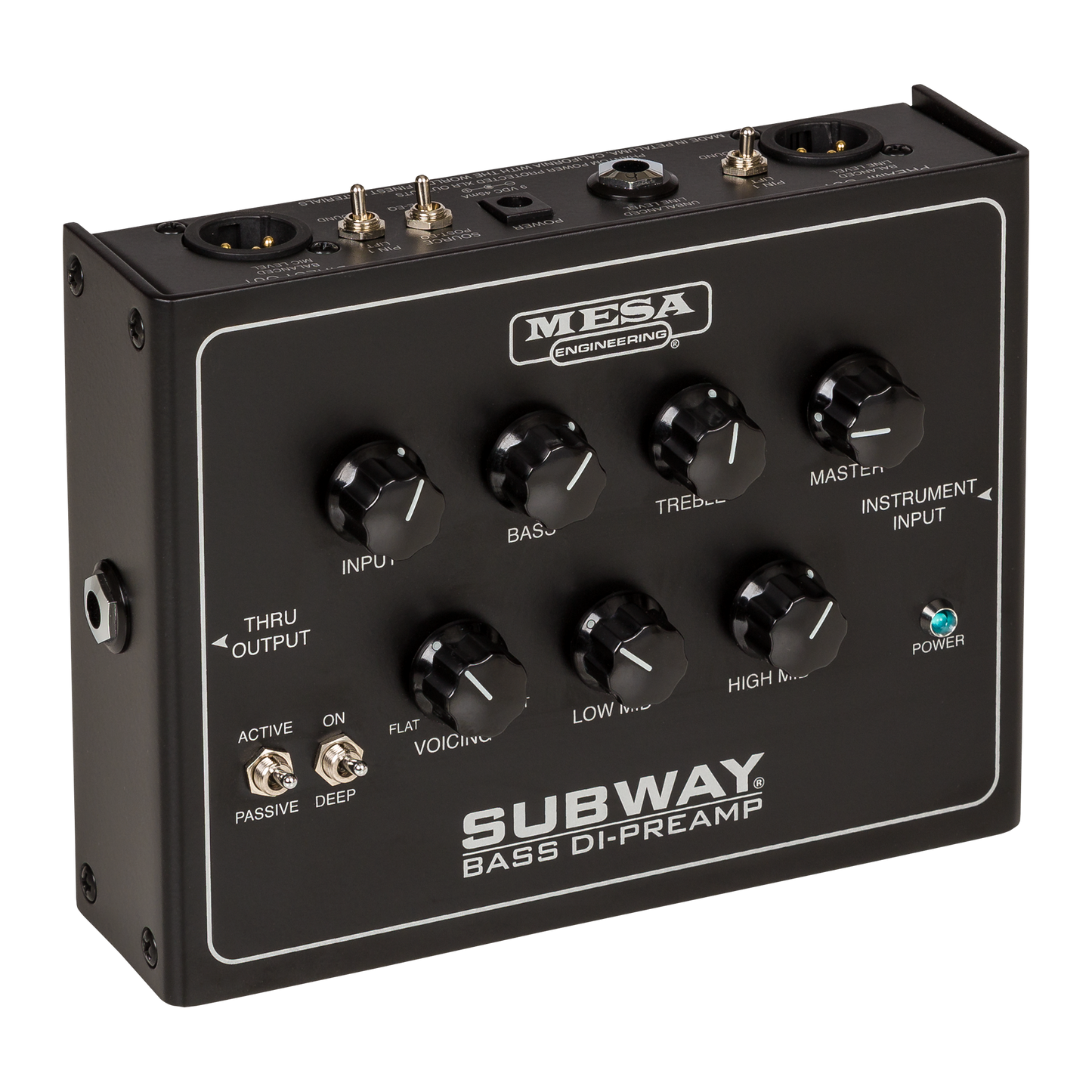

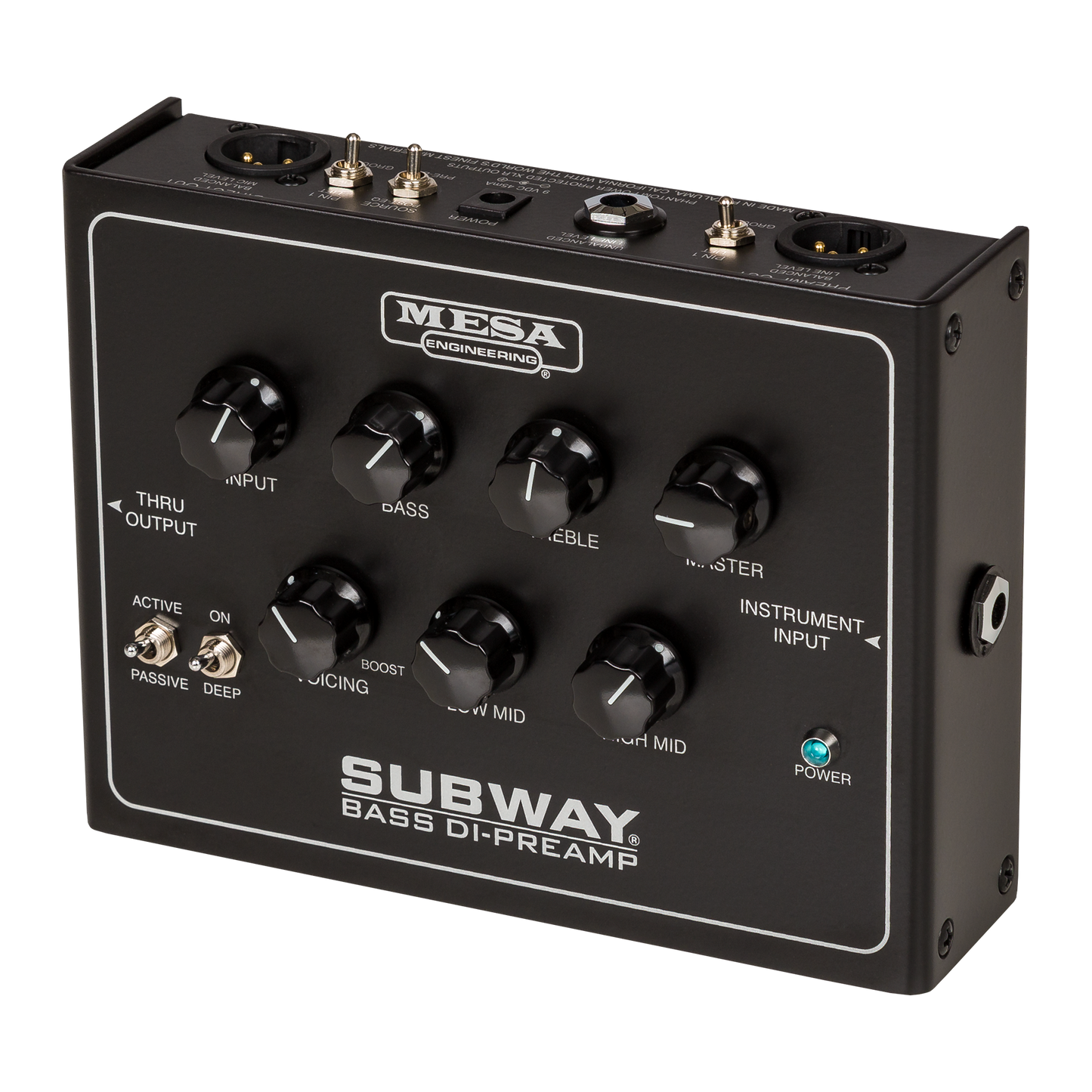

Mesa/Boogie Subway Bass DI-Preamp Box
Mesa/Boogie Subway Bass DI-Preamp Box
Sorry, the Mesa/Boogie Subway Bass DI-Preamp Box is no longer available. We've left this page up for reference only.
Check out the great alternatives on this page or reach out to us directly with any questions!
