Wattage

Selectable Full, Half or Low Multi-Watt™ Power Modes, producing approximately 15, 6, or 2-Watts of output power with standard 6L6 power tubes (Approx. 12, 5, or 1-Watt(s) with optional 6V6 Power Tubes)

Channels & Modes

2 Channel / 2 Modes Per Channel (Normal or Low)

Channels/Inputs

Normal & Low Inputs - NORMAL = Clean to Overdrive, LOW = Cleaner

Mode Voicings styles

Normal & Low Inputs NORMAL = Clean to Overdrive LOW = Cleaner

Graphic Eq Reverb Fx Solo

Reverb, Tremolo, Buffered Series Effects Loop

Foot switchable Functions

Channel 1/2, Reverb On/Off, Tremolo On/Off (3-Button Vintage Style Footswitch Included)

Speakers Impedance

2 - 16 Ohm 10" Jensen Blackbird ALNICO 40 / Total Load = 8 Ohms

Weight

39.45 lbs. (17.89 kg.)

Dimensions

19” (48.26 cm) H x 21 3/4” (55.24 cm) W x 8 7/8” (22.54 cm) D (Height measurement includes rubber feet and the top of the handle in its flat position)

Amp Type

Tube

Rectifier Type

Silicon Diodes

Preamp Tubes

4x 12AX7

Power Amp Tubes

2x 6L6 (or optional 2x 6V6)

Maintenance Free Fixed Bias

Cathode Biased, which is also Maintenance Free

Wattages Quick Reference

Full (approximately 15 watts) Half (approx. 6 watts) or Low Power (approx. 2 watts) with Stock 6L6 Power Tubes (Approx. 12 watts / 5 watts / 1 watt with optional 6V6 Power Tubes) - See Power Amp Details for more information

Built In Power Amp Attenuation

n/a

Power Amp Details Class Wattage

Patented Incremental Multi-Watt™ (Patent 9,917,560) Power Amp, featuring Duo-Class™ (Patent 7,173,488) power, provides three power and three wiring options via individual 3-Way Power Switches per Channel. Choose from the following power options: Full Power (15-Watts) - 2x6L6 (or 12-Watts w/6V6) Push-Pull, Class A, Pentode Half Power (6-Watts) - 2x6L6 (or 5-Watts w/6V6) Push-Pull, Class A, Triode Low Power (2-Watts) - 1x6L6 (or 1-Watt w/6V6) Single-Ended, Class A, Pentode

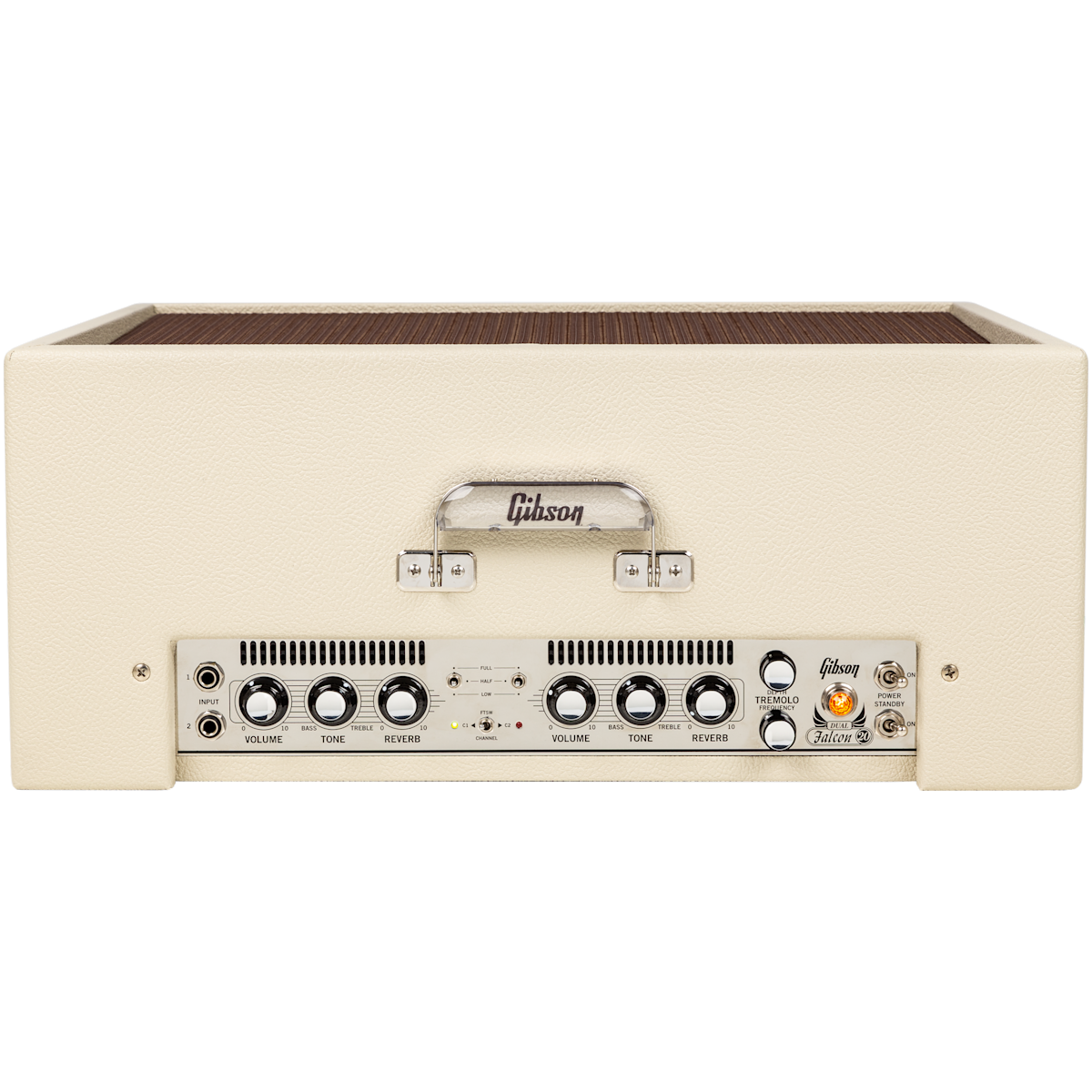

Channel Controls

Volume, Tone, & Reverb (Per Channel) plus global Tremolo Depth & Frequency (Speed) Controls

Reverb Effects Bypass Options

Footswitchable, All-Tube, Spring Reverb & Tremolo

Effects Loop Bypass Options

Buffered Series Effects Loop

Speaker Outputs

One 8 Ohm and Two 4 Ohm

Slave Output

Yes - Fixed-Attenuated "MONITOR" Output from the Speaker Output

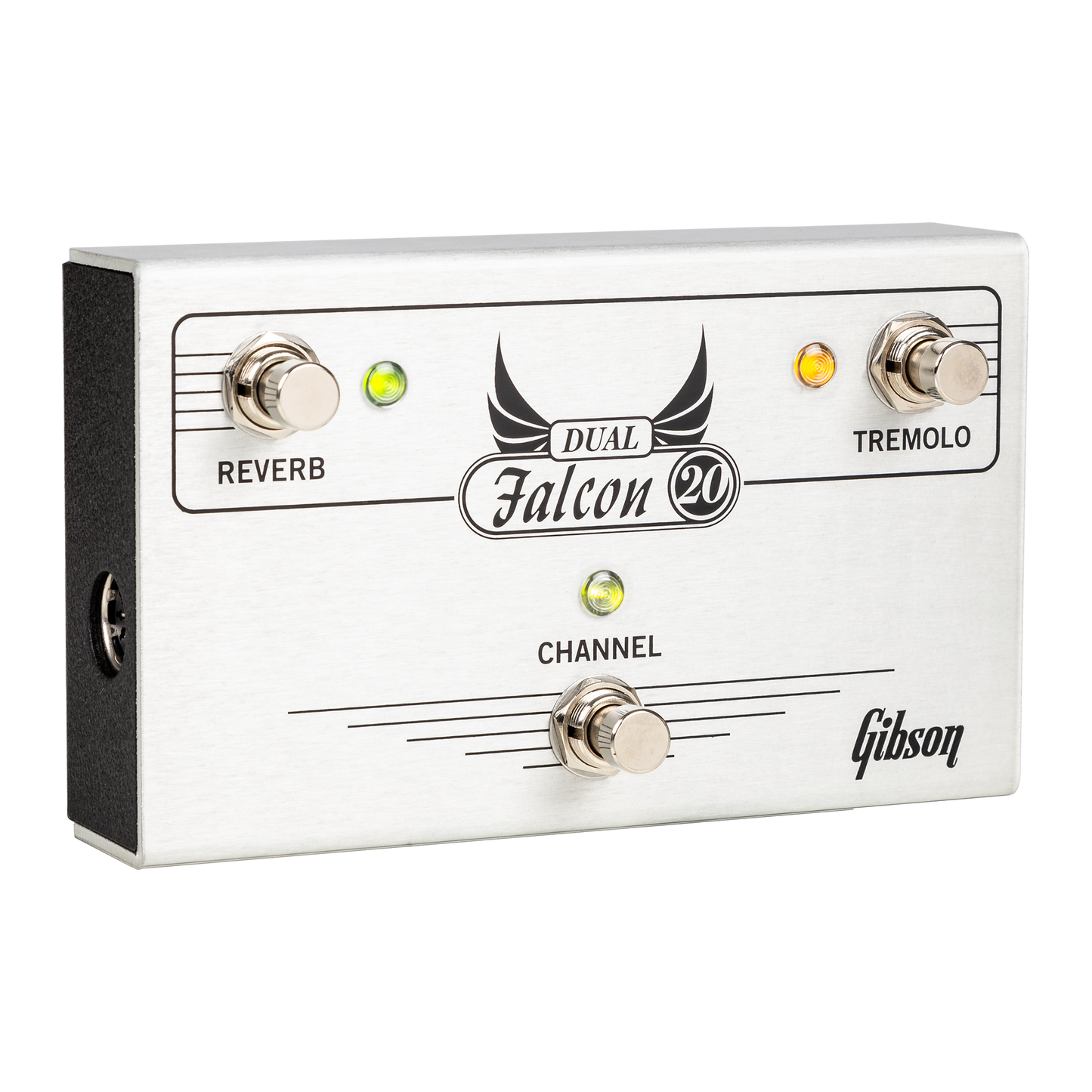

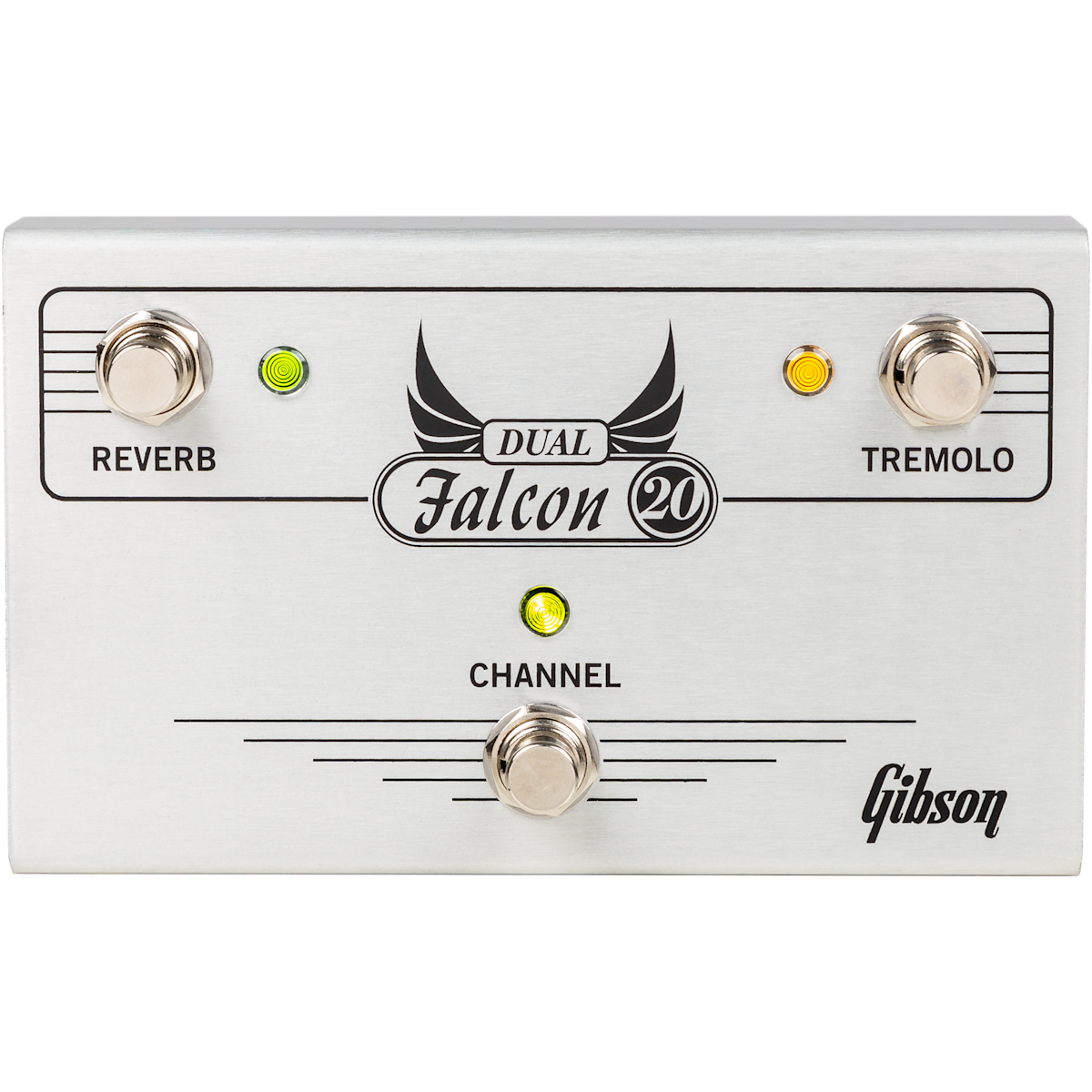

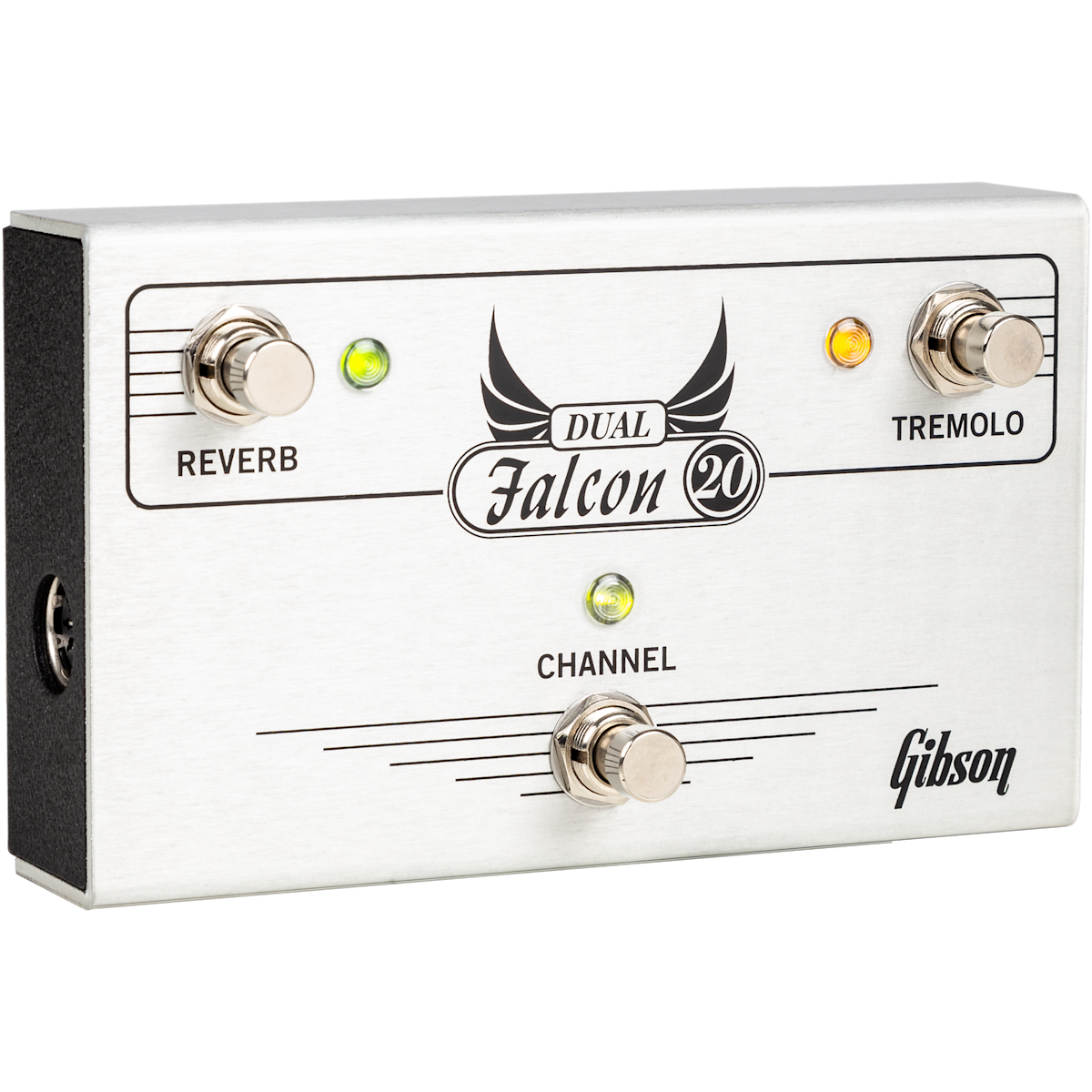

Footswitch

Included - 3-Button Vintage Style (Channel 1/2, Reverb On/Off, Tremolo On/Off)

Slip Cover

Included - Fitted Slipcover

Cabinet Material

Marine Grade, Baltic Birch

Standard Finish Options (no extra cost)

Cream Bronco Vinyl with Oxblood Grille

Speakers Impedance

2 - 16 Ohm 10" Jensen Blackbird ALNICO 40 / Total Load = 8 Ohms

Casters

n/a

Extra Features

Vintage-Inspired Construction for Tone & Portability

Weight

39.45 lbs. (17.89 kg.)

Height

19" (48.26 cm) (Height measurement includes rubber feet and the top of the handle in its flat position)

Width

21 3/4"" (55.24 cm)

Depth

8 7/8” (22.54 cm)
